Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: AVP/OEM
  • Model Number: AVP-003
  • Type: Cat 5e
  • Number of Conductors: 8
  • working temperature: -40°C to 75 °C
  • Concductor: Bare copper,CCA,CCS, CCAG, 4CCA+4CCS
  • Concductor OD.: 0.50mm
  • Cable OD.: 7.2mm
  • Electric Impedance.: 300-500mhz
  • Jacket: PVC,LSZH,ROHS,CMP,CMR,CMX
  • Color.: Red, yellow, blue, grey, green
  • Application.: Network connection
  • Brand: AVP/OEM
  • stable data transmission distance: x-200m

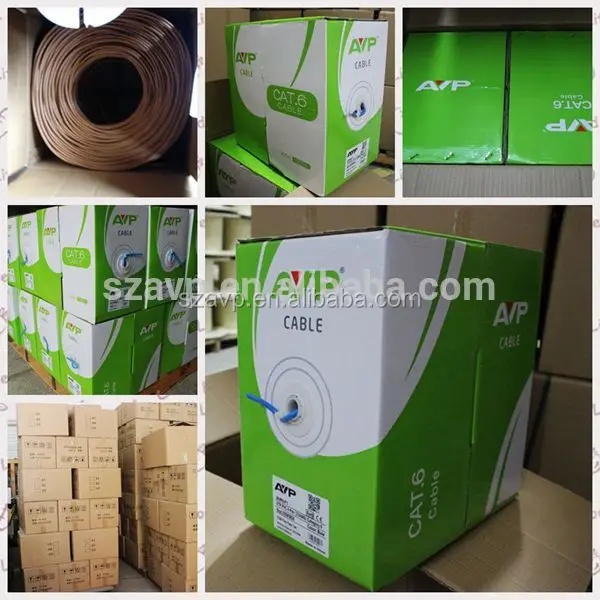

Packaging & Delivery

Packaging Details 1) 305m/roll/box,2boxes/carton,800-900boxes/20HQ,1500boxes/40HQ
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
Delivery Time 7-15days after receive deposit

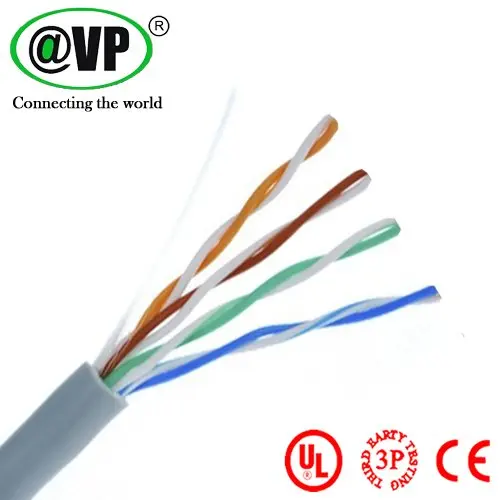

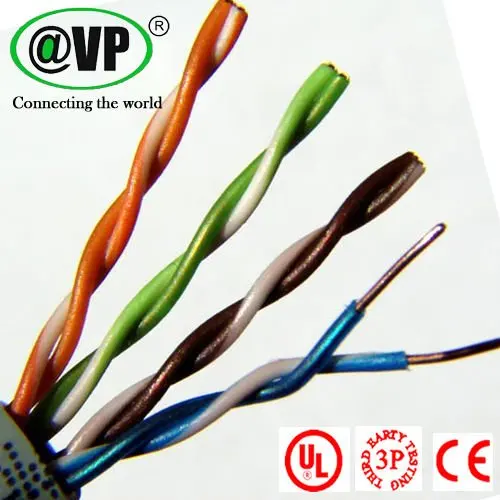

Factory Price 24AWG 4p CCAG UTP CAT5e Network Cable Lan Cable



@VP's Hot deal UTP cat5e Network cable(copper clad allied argentum)

Shenzhen @VP Network Co,. Ltd, China



Competitive Advantages:

Experienced Staff (R&D, QC)          Green Product (ROHS)

Cuotomers' refenrences                 Price  (bottom rock 56.30)

prompt Delivery                             Quality Approvals

Surporting Service                         Working distance: 160 to 200meters



Main Export Markets:

North America        Asia             Western Europe      Australia

Russia and CIS      Africa            South America        Middle East

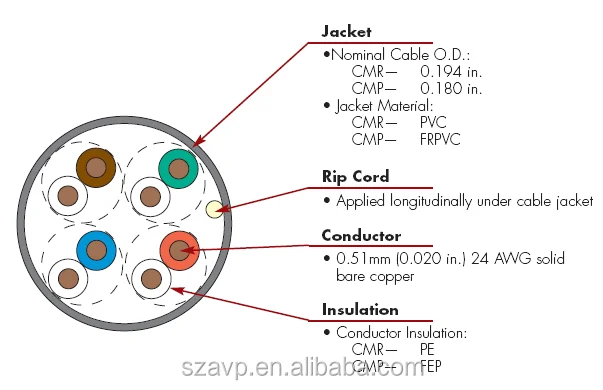

KEY Specifications of UTP CAT5E Network Cable
Withstand outside environment: Acid rain, UV, salt air, lubricating oil splashes, sun, snow, ice.

Fluke test passed: more than 5DB

Details

1.Cat5e/6 network cable exceeds EIA/TIA performance.



2.Guaranteed performance in most demanding networking and Lan applications

Such as Gigabit Ethernet,100BASE-Tx,token ring,155 Mbps ATM,100 Mbps TPPMD,ISDN.etc



3.UL,CE certified TIA/ISO/IEC 11801,Small,Round design,Rip cord for easy insulation removal.



Speical features: (cold & heat-proof PVC jacket and insulation HDPE)


1.Cat5e/6 lan cable:300-500MHZ 24/23AWG 4-Pair  0.51/0.56mm

2.CMP,CMR,CM,ROHS.LSZH, plenum UL listed Approved

3.TIA/ISO9001/9002/IEC 11801
4.X-Shape Spline to seperate pair of wires (stable)

5.Round design & Colored stripe for indications with pairs



 Applications:

1.IEEE 802.3 1000BASE-T, 100BASE-TX, 10BASE-T (IEEE 802.3u)   155 Mb/s ATM
2.ANSI X3.263 100Mb/s     4/16 Mb/s Token Ring
3.High Definition Video,CCTV,CATV

4.ISDN/ADSL/ATM/LAN/Ethernet/Network

5.Working temperature: from -40°C to 70°C



We manufacture various UTP Cat5e network Cable in CU, CCA, CCS, CCAG, Welcome OEM orders
