UTP Cat5e 0.5mm solid copper with PVC/RoHS/LSZH jacket

FOB Reference Price:Get Latest Price
US $13-88 / Rolls | 500 Box/Boxes (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
AVP
Model Number:
A504UT-GY
Number of Conductors:
8
Color:
as required
model:
UTP, FTP, SFTP cat5e ,cat6
Insulation:
PVC, PE
jacket:
PVC/RoHS/LSZH
conductor DB:
0.4mm.0.45mm,0.5mm
conductor:
BC,CCA,CCAG,CCS
Type:
Cat 5e
SupplyAbility
SupplyAbility:
80,000 Carton/Cartons per Month
Packaging & Delivery
Packaging Details
A. 1000ft/305m be packed in pull-out box
B. 2 or 3 pull-out boxes be packed in one outer box
C. Your packing terms available
Port
shenzhen
Lead Time :
15 days

Specifications

1.high-performance and high-quality communication cable
2.pass FLUKE
3.CE/UL/RoHS/ISO approval

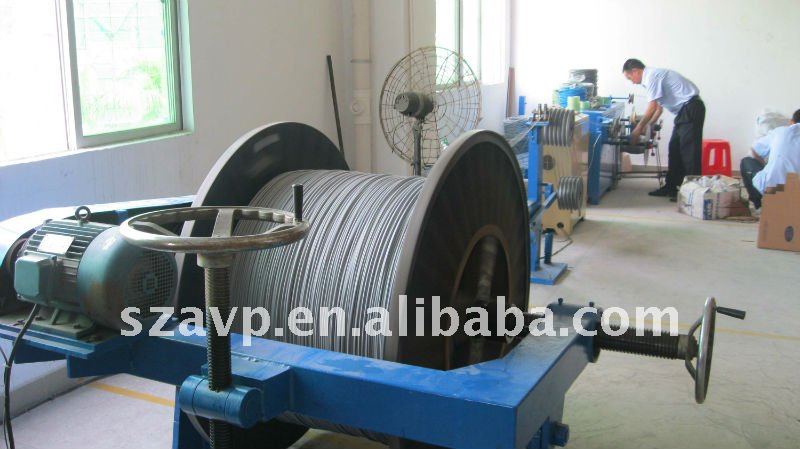

SHENZHEN AVP NETWORK CO.,LTD

Bare Copper Conductor

AWG

24

Construction

1/0.51mm±0.01mm

Insulation, PE

Average thickness

0.21±0.03mm

Min. point thickness

0.17mm

Insulation diameter

0.93±0.03mm

Core twist

Lay length  (Ref.)

24, 11, 17, 14 mm

Pair colors

Blue/White/Blue

Orange/White/Orange

Green/White/Green

Brown/White/Brown


Cabling

Lay length (Ref.)

140mm

Jacket, PVC

Average thickness

0.50±0.05mm

Min. point thickness

0.43mm

Outer diameter

5.1±0.2mm



Cable Specification

Test items

Specification

Max. conductor DC resistance at 20°C

93.8W/km

Cable tray flame test

Pass

Tensile test

Insulation

Jacket

Before aging

Tensile strength

Elongation

³16.5Mpa

³300%

³13.8Mpa

³100%

After aging

Tensile strength

Elongation

³75% of unaged

³75% of unaged

³70% of unaged

³65% of unaged

Aging condition

100°C´48hrs

100°C´240hrs

Electrical Performance

Test items

Frequency (MHz)

Spec.

Resistance unbalance (%), max.




5

Pair-to-ground capacitance unbalance, max.

 (pF/100m)




330

Impedance (W)

1.0-100.0

100±15

Return loss (dB)

Thelistedvalues are for information only. The structural return loss isto begreater or equal to the value calculated by the formula.



SRL³ 20 + 5log10(f)        frequency(f) 1-10MHz

SRL³ 25                          frequency(f) 10-20MHz

SRL³ 25 - 7log10(f/20)     frequency(f) 20-100MHz

1.0

4.0

8.0

10.0-20.0

25.0

31.25

62.5

100.0

20.0

23.0

24.5

25.0

24.3

23.6

21.5

20.1

Attenuation (dB/100m)



Thelistedvalues are for information only. The maximum attenuation lossfor anypair at room temperature is to be determined by using theformula.



0.772

1.0

4.0

8.0

10.0

16.0

20.0

25.0

31.25

62.5

100.0

1.8

2.0

4.1

5.8

6.5

8.2

9.3

10.4

11.7

17.0

22.0

Worst pair-to-pair NEXT (dB)



Thelistedvalues are for information only. The minimum NEXT coupling lossfor anypair combination at room temperature is to be determined byusing theformula.



NEXT(f) ³ 67 - 15log10(f/0.772)
